TELIKOU BK-104 4-Wire Belt Pack

Description

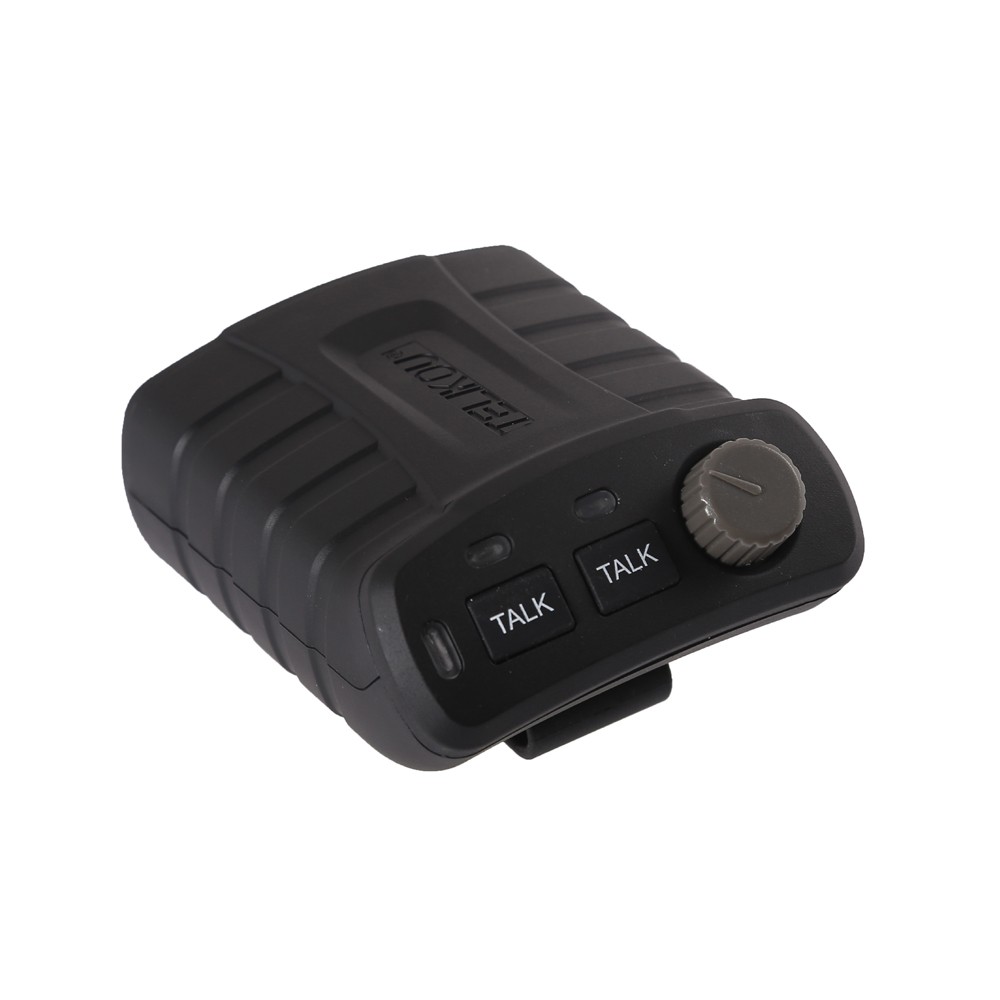

BK-104 4-Wire Belt Pack

BK-104 is TELIKOU new design belt pack with plastic case. It is a 4-Wire belt pack with Tally. Mainly to work with TELIKOU FT-800 main station and other 4-wire devices.

Single channel 4-wire belt pack

PTT and Latch Talk button

Volume control

Supports TL-2 dual color tally light

XLR-7 and RJ-45 cable connector

XLR-4F or XLR-5M headset connector

 Specifications

Bandwidth: 200Hz-8000Hz ±3dB

Earphone：Dynamic，50-2000 ohm

Microphone:

1. Dynamic (100-600 ohm)

2. Electret

Input Level Adjustment Range: >34dB

Audio Input Type:  Balanced

Audio Output Type: Balanced

Connector Input Independence: >10Kohm

Connector Output Independence: <600 ohm

Input Level: -17dBu~18dBu

Power: 8V-16VDC,  <65mA/16VDC

Size: 118mm x 45mm x 110mm(L x W x H
