IFB-316/BT-02 Wireless IFB In-Ear Monitoring Intercom System

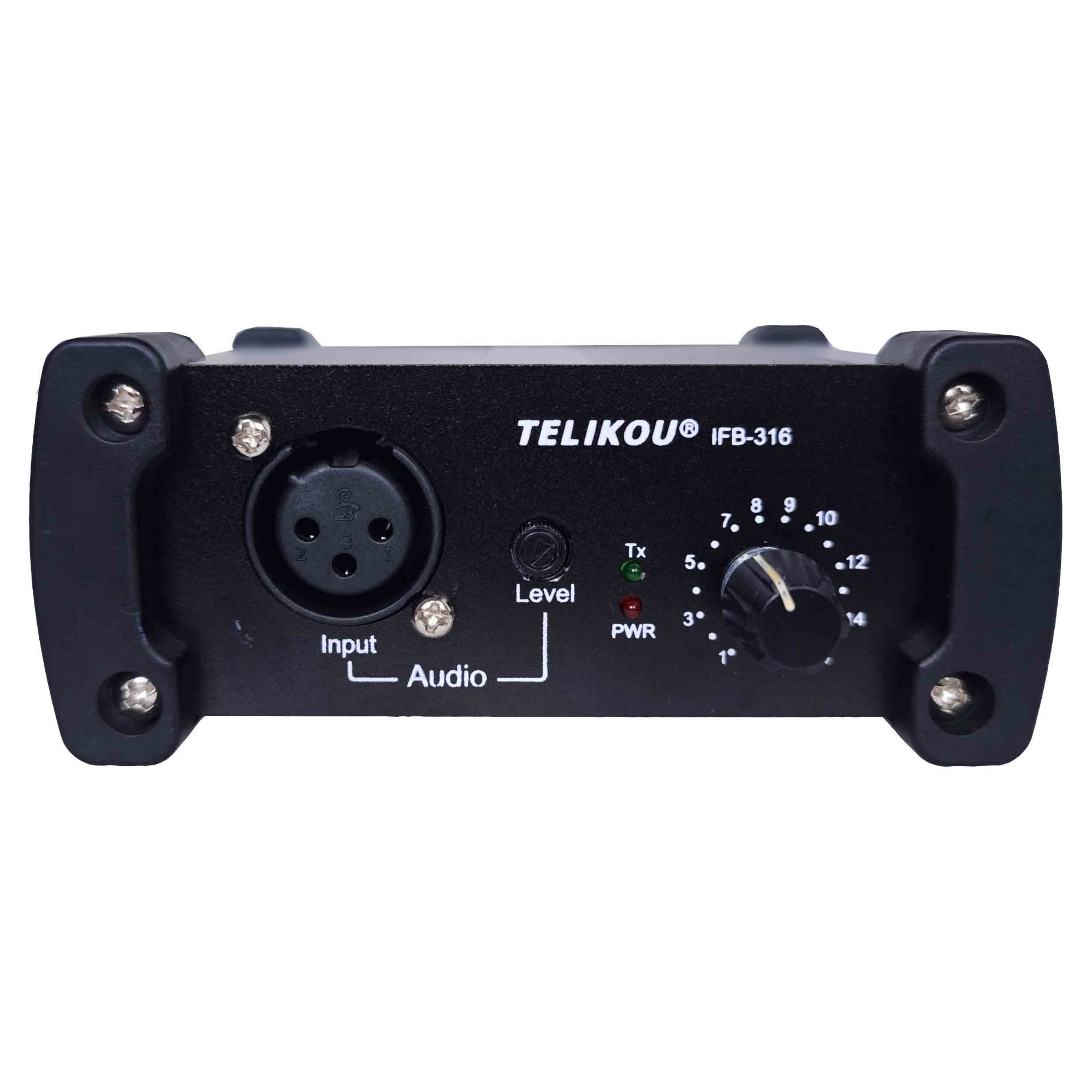

IFB-316 Wireless IFB Transmitter

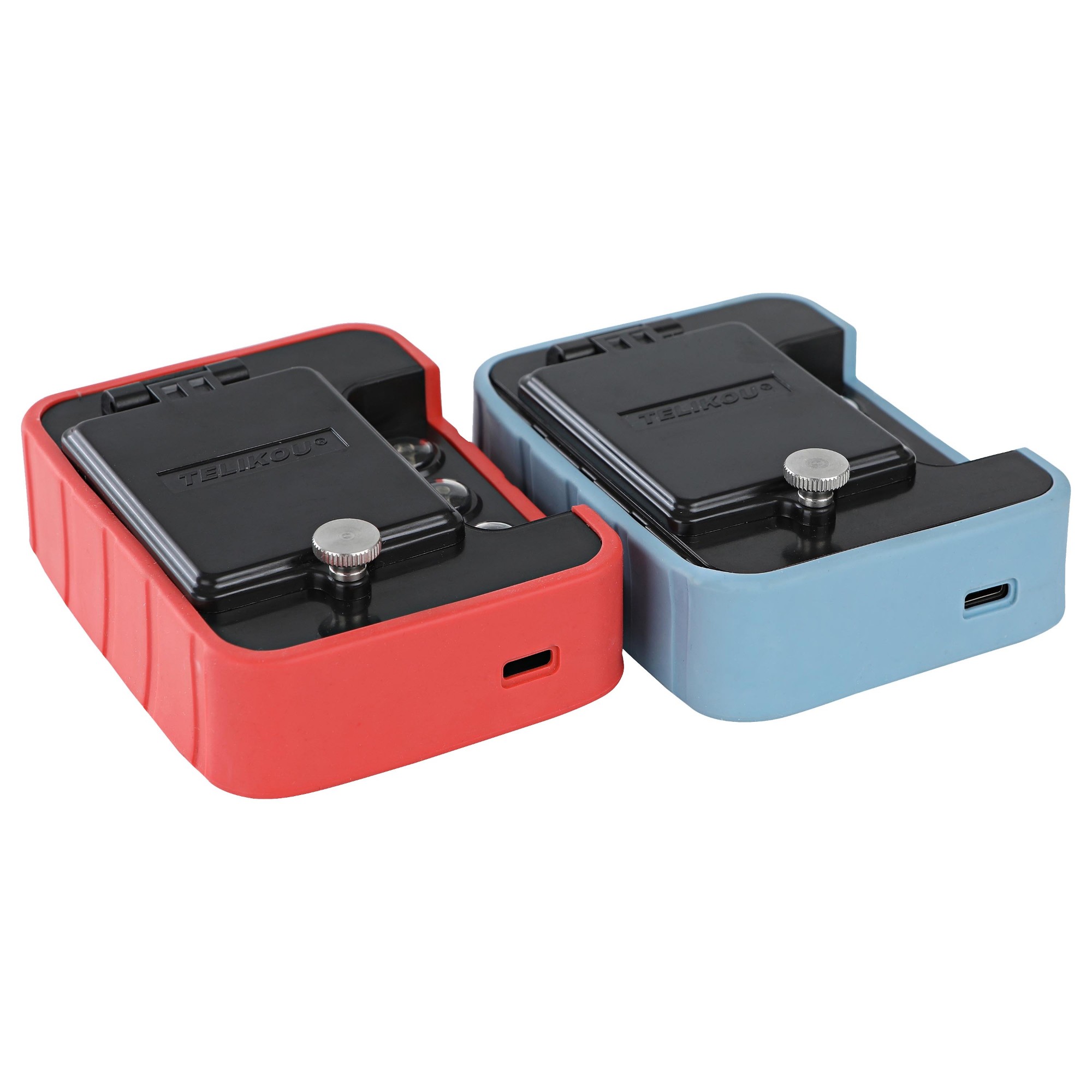

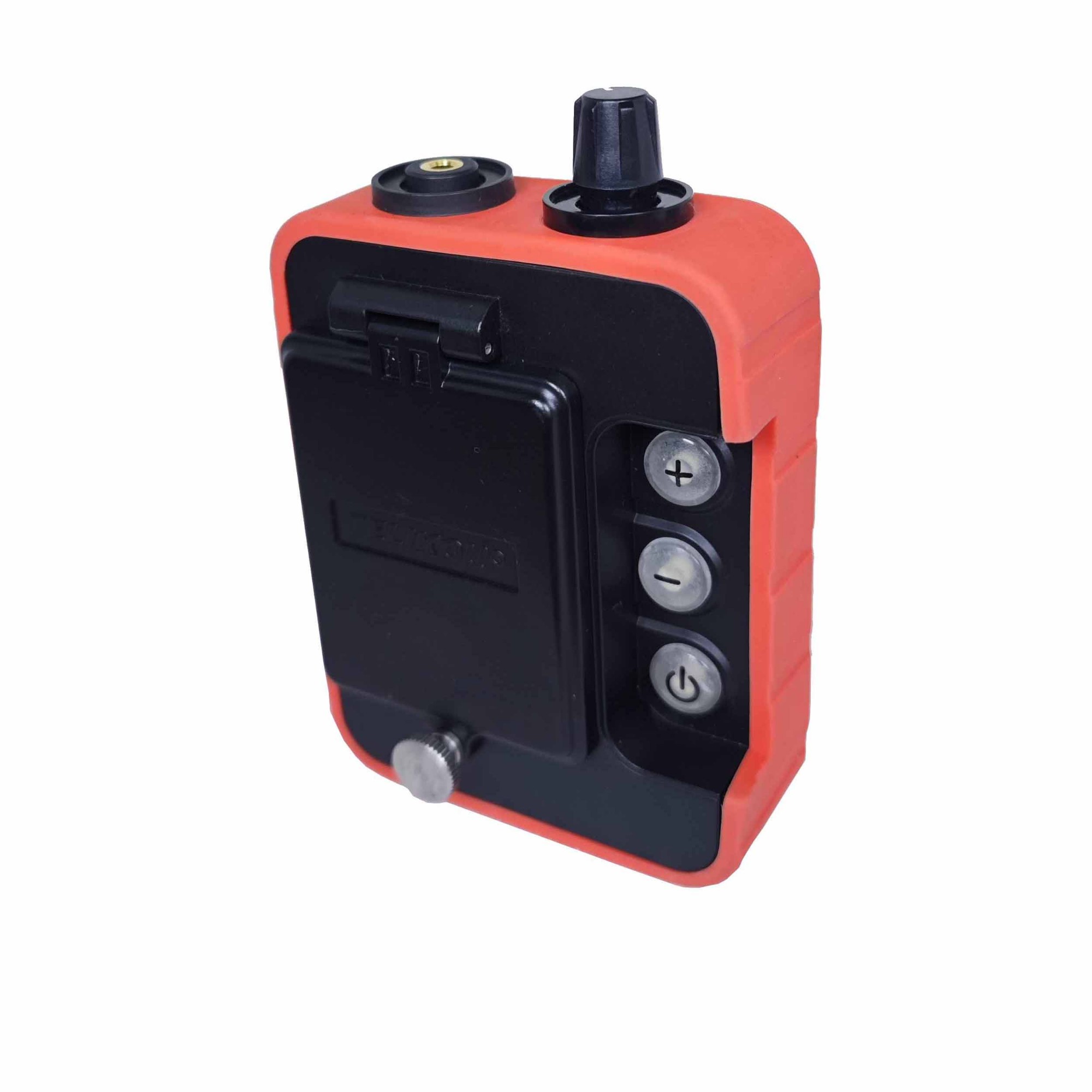

BT-02 Wireless IFB Receiver

The IFB-316/BT-02 is a wireless in-ear monitoring IFB system.

Features:

Dual color water proof case for receiver belt pack

3.5mm jack for talent earphone

Low delay

High quality Audio

Wireless transmitter fit for most IFB system

Type-c connector for rechargeable battery

Technique Features:

Frequency: UHF: 868MHz, UHF: 500~980 MHz, VHF : 160~270MHz

Range: 200m in Open area

Audio signal-to-noise ratio: 96dB

Frequency Response: 20Hz-20KHz

From microphone input to audio output delay is less than 3ms

digital modulation method: pi/4 DQPSK

sampling frequency : 48KHz

Transmit:

transmitted power: 10dBm

Band Width: 300KHz

Receive:

receive sensitivity: -96dBm

SNR: 96dB

Power：

IFB-316: XLR-3 (24VDC)

BT-02: 14500 Li-ion Battery x 1~3 (min 1pc battery)
